Rubber crumb processing turns discarded tires and other rubber materials into reusable granules through a sequence of shredding, separation, grinding, screening, and quality-control steps.
Modern rubber crumb processing equipment can include tire shredders, rasper systems, granulators, steel separation units, fiber removal systems, and fine grinding machines. Understanding how a rubber crumb production line works helps readers recognize common processing errors and understand how a crumb rubber recycling plant manages material consistency, contamination, and particle size.
Context
What Is Rubber Crumb Processing?

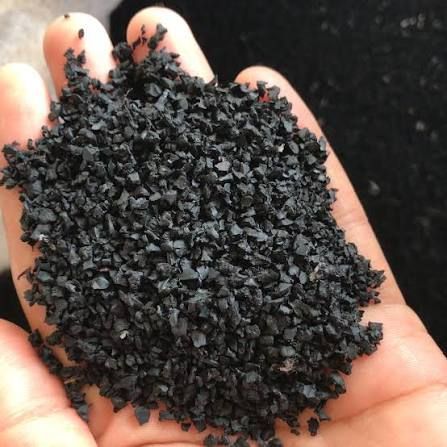

Rubber crumb is produced by reducing waste tires into smaller rubber particles. Depending on the intended application, the final material may range from relatively coarse granules to fine rubber powder.
A typical crumb rubber processing plant receives whole or prepared tires and gradually reduces their size. The process is designed to separate rubber from embedded materials such as steel and textile fiber.
A complete system can involve rubber crumb processing equipment, crumb rubber processing equipment, and tire recycling equipment arranged into several connected stages. Each stage has a specific purpose, so a problem early in the process can affect material quality later.
Where Does the Material Come From?
Used vehicle tires are a major feedstock for crumb rubber production. Tires contain rubber compounds along with steel reinforcement, textile components, and other materials.
The processing objective is not simply to make tires smaller. It is to recover rubber while controlling contamination and producing particles within a defined size range.
Common stages include:
- Tire preparation and initial size reduction
- Secondary shredding or granulation
- Steel separation
- Fiber separation
- Rubber grinding
- Screening and particle classification
- Final inspection and storage
How a Typical Processing Line Works
A rubber crumb production line may begin with a tire shredder and continue through granulation, separation, grinding, and screening equipment. Some systems use a tire shredder and granulator system to create progressively smaller material.
A tire rasper machine can further process tire shreds while helping separate rubber from reinforcement materials. After additional grinding, rubber crumb separation equipment classifies particles according to their dimensions.
The exact arrangement varies according to tire types, desired particle size, throughput requirements, and downstream application.
| Processing Stage | Main Purpose | Common Control Point |
|---|---|---|
| Primary shredding | Reduce tire size | Feed consistency |
| Granulation | Create smaller rubber pieces | Particle dimensions |
| Steel separation | Remove wire | Magnetic separation |
| Fiber separation | Remove textile material | Air or mechanical separation |
| Fine grinding | Reduce rubber further | Temperature and particle size |
| Screening | Classify material | Screen condition |
| Final inspection | Check consistency | Contamination and size |
Importance
Why Processing Accuracy Matters
Small process errors can create larger problems as material moves through the line. For example, inconsistent feed material can place uneven loads on rubber granulation equipment and affect the size distribution of the output.
Excessive heat can also influence rubber behavior during grinding. If equipment operates outside its intended conditions, particles may become inconsistent or equipment components may experience additional wear.
These issues matter because rubber crumb is often specified according to particle dimensions, cleanliness, and material characteristics. Consistent processing therefore depends on controlling several variables rather than relying on one machine.
Common Errors at Different Stages
A practical way to understand rubber crumb processing is to examine where errors commonly occur.
- Feed preparation: Whole tires may contain unexpected materials or irregular shapes that affect feeding.
- Primary shredding: Incorrect feed rates can create inconsistent tire shreds.
- Granulation: Worn cutting components can influence particle dimensions.
- Steel separation: Incomplete separation can leave wire fragments in the rubber stream.
- Fiber separation: Remaining textile fibers can reduce material purity.
- Grinding: Excessive heat or unsuitable settings can affect particle consistency.
- Screening: Damaged or blocked screens can produce mixed particle sizes.
- Storage: Moisture, dust, and cross-contamination can affect the processed material.
Equipment Selection and Process Matching
Rubber crumb processing machine selection should correspond with the required output. A system intended for coarse rubber granules does not necessarily use the same configuration as a system designed for fine rubber powder.
A crumb rubber recycling plant may therefore combine several types of machinery rather than relying on one universal processing unit. Industrial rubber recycling equipment can include conveyors, shredders, granulators, magnetic separators, fiber separators, mills, screens, and dust-control components.
The equipment sequence should also allow material to move smoothly between stages. Poor material flow can create accumulation, uneven feeding, and unnecessary recirculation.
Recent Updates
Greater Focus on Automated Processing
Recent developments across the tire-recycling sector have placed greater attention on automation, process monitoring, and integrated equipment. An automated tire recycling system can coordinate material movement between different processing stages and reduce the need for repeated manual handling.
Automated systems may use sensors, control panels, variable-speed drives, and monitoring functions to maintain more consistent operating conditions. These technologies are increasingly relevant for facilities processing larger volumes of waste tires.
Improved Separation Processes
Tire recycling equipment has also developed around more effective separation of steel and textile components. Tire steel separation equipment commonly uses magnetic systems to capture ferrous wire after tires have been reduced in size.
A tire fiber separation system can then help remove lightweight textile material. Combining these separation stages with controlled screening helps produce a more consistent rubber fraction.
Greater Interest in Fine Rubber Processing
Demand for different particle sizes has encouraged continued development of rubber powder production equipment and fine rubber grinding equipment. Fine processing generally requires closer control of temperature, particle distribution, feed rate, and grinding conditions.
A tire rubber grinding machine may therefore operate as part of a multi-stage system rather than as an isolated piece of equipment. Material can pass through several size-reduction and classification stages before reaching the desired specification.
Integrated Plant Designs
Turnkey crumb rubber plant configurations increasingly combine shredding, granulation, separation, grinding, screening, and conveying into a coordinated production arrangement.
An automated crumb rubber production line can also incorporate monitoring points throughout the process. The broader trend is toward better material tracking, improved process consistency, and reduced unnecessary handling.
Tools and Resources
Equipment Documentation
Manufacturer manuals and technical documentation are important resources when operating rubber crumb processing equipment. They typically contain information about operating ranges, inspection intervals, component specifications, and safety procedures.
Documentation should correspond to the exact equipment model because operating requirements can vary considerably between machines.
Process Monitoring Tools
Several basic measurements can help operators understand process conditions:
- Feed rate monitoring
- Particle-size screening
- Magnetic separation checks
- Fiber-content inspection
- Temperature monitoring
- Equipment vibration monitoring
- Power-consumption tracking
- Production-volume records
These measurements can help identify changes before they become persistent process problems.
Particle-Size Screening
Screening equipment is particularly useful for determining whether processed rubber falls within a required size range. Samples can be separated through appropriate screens and then examined for consistency.
A simple production record can track particle size, contamination observations, processing conditions, and equipment adjustments. Maintaining consistent records makes it easier to compare batches and identify recurring issues.
Equipment and Plant Planning Resources
A crumb rubber plant manufacturer may provide equipment specifications, plant-layout information, process-flow documentation, and machinery capacity details. A rubber crumb machine manufacturer may also provide technical information about individual grinding, granulation, or separation units.
When evaluating a tire recycling plant configuration, readers can compare:
- Feedstock type
- Required output particle size
- Processing stages
- Steel and fiber separation method
- Expected material flow
- Screening arrangement
- Automation level
- Maintenance requirements
- Dust-control provisions
- Space and utility requirements
These factors provide a clearer picture of how an entire processing system functions.
FAQs
What equipment is used in rubber crumb processing?
A typical system can include shredders, granulators, tire rasper machines, magnetic separators, fiber separation equipment, grinding mills, screens, conveyors, and dust-control equipment. The exact combination depends on the desired rubber particle size and processing requirements.
How does a crumb rubber production line separate steel?
Tire steel separation equipment commonly uses magnetic separation after tires have been reduced into smaller pieces. Additional screening and processing stages can help remove remaining wire from the rubber stream.
What is the role of a tire rasper machine?
A tire rasper machine reduces processed tire material into smaller rubber pieces while helping separate reinforcement components. It can form part of a larger tire recycling equipment configuration.
What affects rubber crumb particle size?
Particle size can be affected by the type of grinding equipment, screen configuration, feed characteristics, machine condition, processing temperature, and operating settings. Screening helps classify material into different size ranges.
What is included in a crumb rubber recycling plant?
A crumb rubber recycling plant can include tire preparation, shredding, granulation, steel separation, fiber separation, grinding, screening, conveying, and storage stages. More advanced configurations may integrate automated controls and process monitoring.
Conclusion
Rubber crumb processing is a multi-stage process that transforms discarded tires into controlled rubber particles. Equipment such as shredders, granulators, separation systems, grinding machines, and screens each plays a distinct role in maintaining material consistency. Recent developments have emphasized automation, improved separation, process monitoring, and integrated plant configurations. Careful control at every stage helps reduce common processing errors and supports consistent handling of recycled rubber materials.
